Telecentric Lens
SOD-10X
▪10× optical magnification
▪ Capable of 15× and 20× with rear converter lenses
▪ High NA of 0.23
▪ Long WD, 55.2 mm
▪ Microscope class resolution, 1.5 μm
▪ Compact, integrated design
Download DataTechnical DatasheetDrawing DataDrawing Data（STEP）
Main Applications

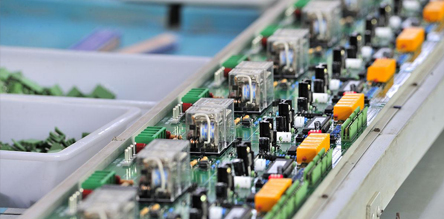

Alignment
Component recognition and inspection
Specifications
|
Spec |
SOD-10X |
|
Coaxial Illumination |
- |
|
Magnification |
10 |
|
WD (mm) |
55.2 |
|
Resolution (μm) |
1.5 |
|
Depth of Field (mm) |
0.017 |
|
NA |
0.23 |
|
Effective Fno |
22 |
|
Distortion (%) |
0.01 |
|
Weight (g) |
500 |
|
Largest Compatible Sensor |
2/3" |
|
Mount |
C Mount |
* Resolution values indicate the theoretical resolution at a wavelength of 550nm
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)
External View
