Telecentric Lens
MML1.5-HR110VI-35M58-FB12
▪ Designed for large format camera（Diagonal 28/35/43mm);
▪ High resolution, compatible with 1.1” 3.2μm sensor.
Download DataTechnical DatasheetDrawing DateDrawing Date（STEP）
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
|
Model |
MML1.5-HR110VI-35M58-FB12 |
|
Magnification (x) |
1.5 |
|
O/I [mm] |
340.1 |
|
WD (mm) |
109 |
|
Resolution (μm) |
2.9~9.8 |
|
Depth of Field (mm) |
0.23~0.78 |
|
NA |
0.115~0.034 |
|
Effective Fno |
6.44~22 |
|
IF (mm) |
35 |
|
Distortion (%) |
≤-0.037 |
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

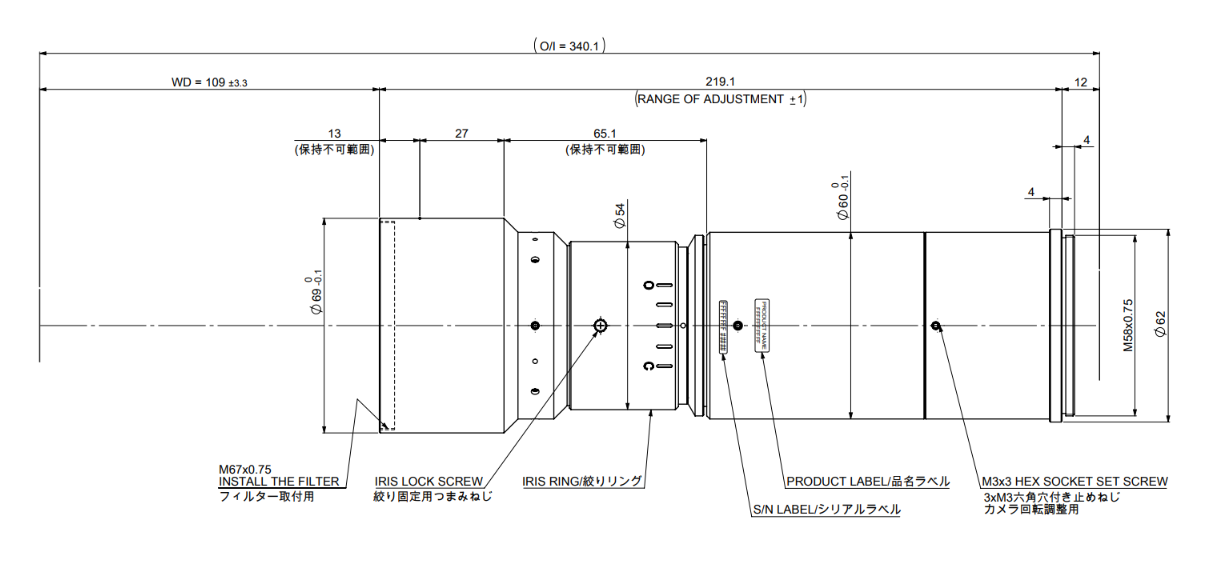

External View
