Telecentric Lens
MML06-SR110VI-18C
▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.
▪ Image format 18.5mm (1.2" sensor)
▪ Adjustable the best depth of field corresponding variable iris.
Download DataTechnical DatasheetDrawing DateDrawing Date（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection
Model Description
Specifications
|
Spec |
MML06-SR110VI-18C |
|
Magnification x |
0.6 |
|
O/I[mm] |
256.5 |
|
WD[mm] |
110 |
|
Resolution[μm] |
6.3~24.8 |
|
Depth of Field[mm] |
1.25~4.91 |
|
NA |
0.053~0.014 |
|
Effective F# |
5.6~22 |
|
Max. IF[mm] |
17.52 |
|
TV Distortion[%] |
≤-0.040 |
* Resolution values indicate the theoretical resolution at a wavelength of 550nm;
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

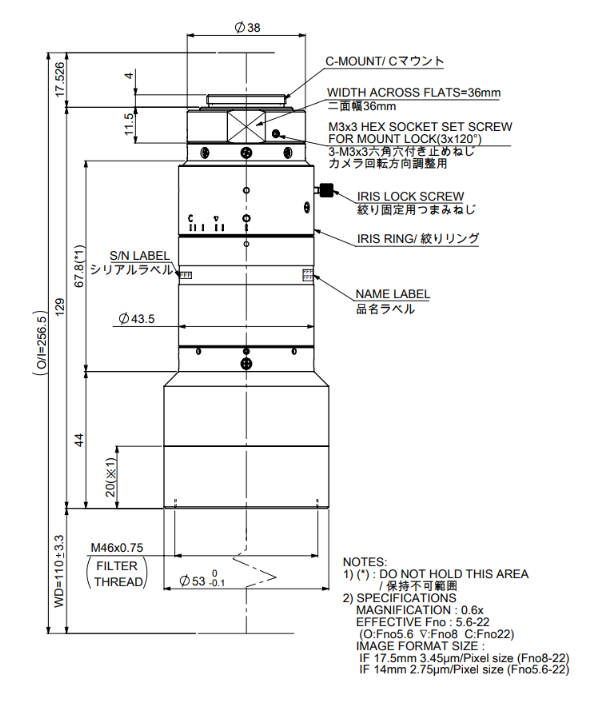

External View
