Telecentric Lens
MML1-HR130VI-35M58
▪ Designed for large format camera（Diagonal 28/35mm)
▪ High resolution, compatible with 3.5μm/pixel camera elements.
Download DataTechnical DatasheetDrawing DateDrawing Date（STEP）
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
|
Model |
MML1-HR130VI-35M58 |
|
Magnification (x) |
1 |
|
O/I [mm] |
328.3 |
|
WD (mm) |
132 |
|
Resolution (μm) |
4.3~14.8 |
|
Depth of Field (mm) |
0.52~1.76 |
|
NA |
0.077~0.023 |
|
Effective Fno |
6.47~22 |
|
IF (mm) |
35 |
|
TV Distortion (%) |
≤0.051 |
*1 Resolution values indicate the theoretical resolution at a wavelength of 550nm;
*2 Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

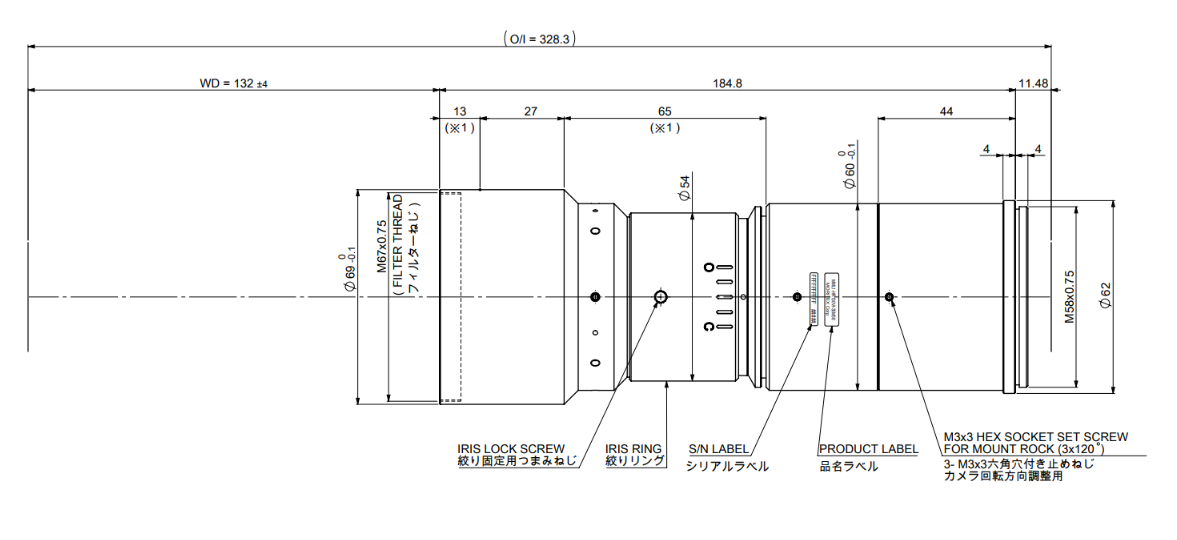

External View
